Get UNI-T Infrared Thermal Imager PCB Circuit Floor Wall Heating Pipe Industrial Detection Thermal Imaging Camera UTi260B RX-600



Special Price for UNI-T Infrared Thermal Imager PCB Circuit Floor Wall Heating Pipe Industrial Detection Thermal Imaging Camera UTi260B RX-600

If You will buy for , then UNI-T Infrared Thermal Imager PCB Circuit Floor Wall Heating Pipe Industrial Detection Thermal Imaging Camera UTi260B RX-600 is possible make you like

Buy UNI-T Infrared Thermal Imager PCB Circuit Floor Wall Heating Pipe Industrial Detection Thermal Imaging Camera UTi260B RX-600 Right Here and Right Now and You will save  USD 123.86 or 30%%, Because price is will changed at any time without notice, or stock may be run out, If You Buy Now You Just Pay For  289.00, not in Reguler Price at  412.86. Yap! This is I mean you will Save  30% % /  USD 123.86

Addition Information of UNI-T Infrared Thermal Imager PCB Circuit Floor Wall Heating Pipe Industrial Detection Thermal Imaging Camera UTi260B RX-600

Product UD (PID) : 1005003093700638
Product Rank : [RANK] at Keyword
Reguler Price :  412.86
Discount Price : 289.00
Category ID : 1420
Category Name : Tools
Saving   :  USD 123.86
Discount : 30%
Rank : [RANK]  From
Last Stock Available : (When this Article was written).


Technical Parameter

Technical Parameter
Temperature range: -15°C~ 550°C (5°F~1022°F)
Precision: ±2°C/±2% whichever is greater
Sensor: Uncooled focal plane
Mode High gain: -15°C~150°C, low gain: 150°C~550°C
Corresponding time of temperature measurement: ≤500ms
Thermal imaging pixels: 256*192 (49152)
Pixel size: 12um
Swatches: White hot, black hot,iron red, lava, rainbow, high contrast rainbow, red hot
Infrared spectrum bandwidth: 8~14um
Field of view: 56° (H) *42.2° (V)
IFOV: 3.8mrad
Thermal imaging sensitivity: <60mK
Frame rate: <25Hz
Temperature measurement display: Central point temperature measurement, high temperature tracking and key area temperature measurement (ROI), the default is high temperature tracking
Temperature measurement point: In addition to the center point, 3 temperature measurement points can be customized
Image mode: Thermal imaging, fusion, picture in picture, visible light
Visible light resolution: 640x 480
Mixed settings: 0% (full visible light), 25%,50%, 75%, 100% full thermal imaging)
Image format: BMP
PC analysis software:Yes
Real-time image transmission: PC software real-time projection
Data communication: Type-C USB

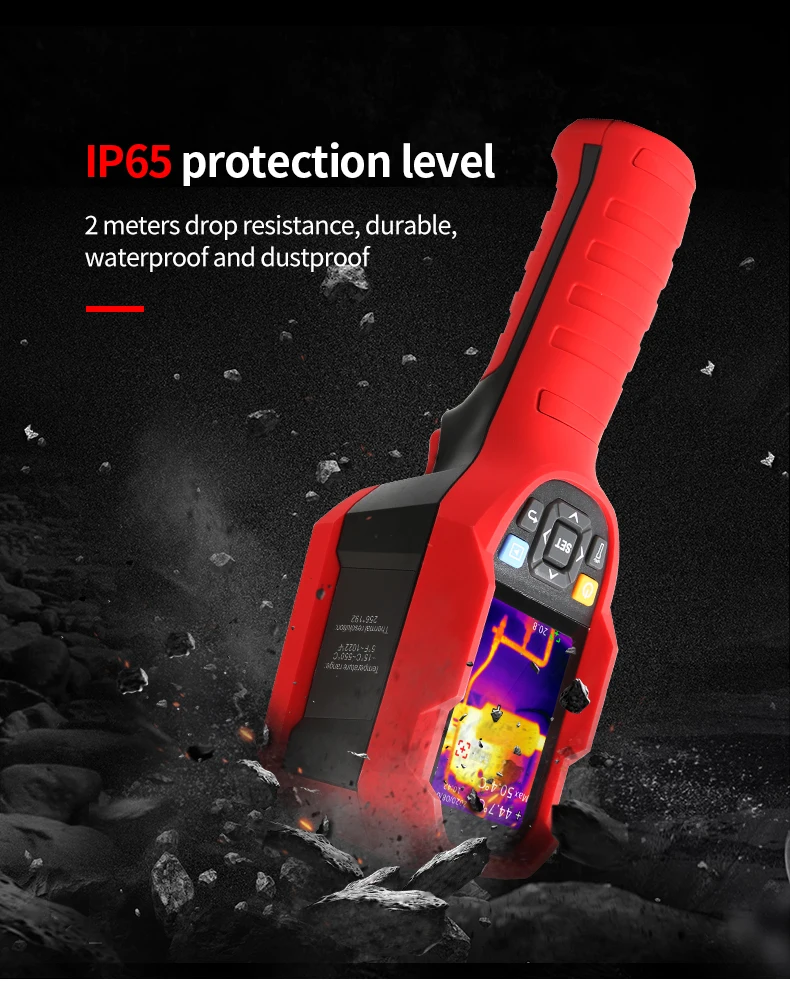

IP rating: IP65
Drop test: 2m
Display screen: 2.8 "TFT LCD
Display resolution: 320* 240
Battery: Li-ion 3.6V 5000mAh 26650 single cell
Automatic shut-down: Optional (5min, 10min, 30min,) The default 30min automatic shutdown
Usage time: Not less than 6 hours
Charging time: No more than 5 hours
Charging voltage/current: 5V/2A
Image storage: Micro SD card
Product Size: 236*75.5*86mm
Accessories: Manual, Type-C USB cable, 16G TF card

Buyer Notice

1. Dear friend, once we have confirmed your order, we will arrange shipment for you as soon as possible and update the logistics tracking number for you in time. Please be patient and feel free to contact us.
2. This is 100% authentic. Our authorization certificate is complete, please don't worry.
3. If you are worried about import duties or taxes, please contact us to confirm the declared value on the shipping invoice before shipping, but we can't be 100% sure that there will be no clearance problems and pay for the duties are the buyer's duties and obligations.
4. Positive feedback is important for you and us, kindly pls leave a positive feedback for us if you are satisfied with our product and service, if not, pls feel free to contact us firstly before you give us a negative remarks, we will try our best to help you deal with the problem.
